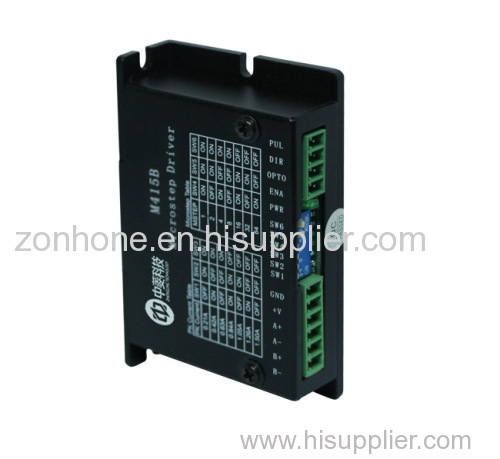

Product Feature
1   Supply Voltage 36VDC
2   Drive Current 0.21-1.5A
3   1-64 subdivide can be chose, dynamic can change to subdivide(customize)
4   Optical isolation signal input
5   Optimize the noise of motor function
6   Can drive any two-phase, four-phase mixed stepping motor under 1.5A phase current
7   20KHz chopping frequency

Main Application Fields
Suitable for all kinds of small and medium-sized automation equipment and instruments, such as engraving machine, marking machine, cutting machine, laser typesetting, plotter, numerically controlled machine tools, automatic assembly equipment, etc. The application effect is very good for little noise and high speed equipment.

Electrical Specification


Working Current Setting


Micro-step Subdivide Setting


Interface Signal
